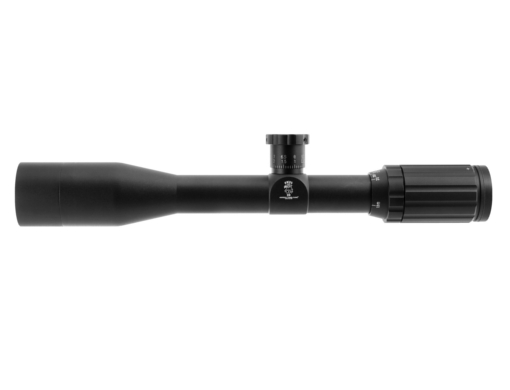

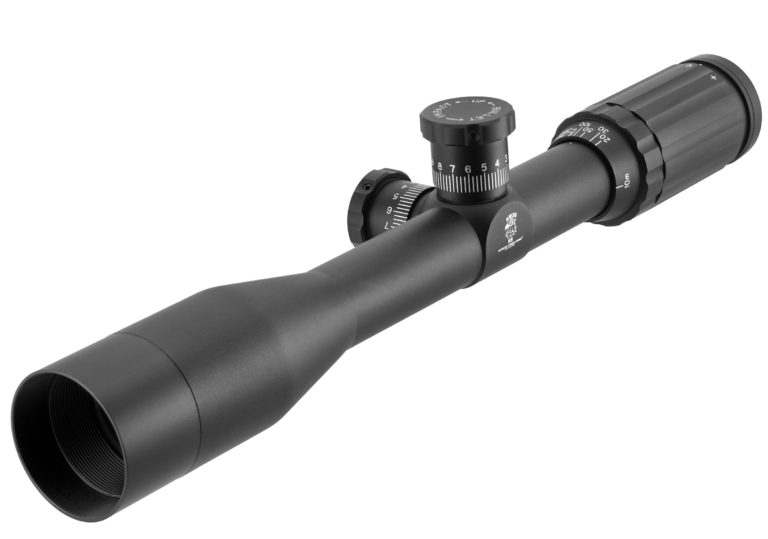

SWFA SS 16x42 Tactical Rear Focus Riflescope, Mil-Quad
- Matte Finish
- Mil-Quad Reticle
- 30mm Tube
- Rear Focus
- Recoil Tested to .50 cal
- .10 MRAD Turrets
- Suitable for Spring Powered Air Rifles
SWFA SS 16x42 Tactical Rear Focus Riflescope
The SWFA SS 16x42 Tactical has been a favourite for many years amongst air rifle/ rimfire and centerfire shooters. All SWFA SS 16x42 Tactical rifle scopes are precision made in Japan and feature top quality lenses & multi coating systems. Each SWFA SS Riflescope is built on a 30mm main tube with the option of a matching MOA 1/4 MOA or MIL 0.1 MIL reticle depending on how your shooting brain thinks.
The robust 30mm tube ensures the SWFA SS 16x42 is strong enough for all recoil punishment which even includes .50 caliber. The SWFA SS series features a unique easily adjustable rear focusing system which allows parallax adjustment from 10 yards out to infinity.ÂÂ
The SWFA SS 16x42 Tactical is perfect for a wide range of shooting disciplines but its unique make up makes it perfect for Air Rifle, Rimfire or 600 yard shooting due to its quality of glass, large 120 MOA elevation adjustment range, 10 yard minimum focus distance and multiple aiming point reticle system in MOA MOA or MIL MIL. The SWFA SS 16x42 also features an extremely usable patented MOA Quad based reticle or MIL Quad based reticle
SWFA SS 16x42 Mil-Quad Tactical Rear Focus Rifle scope Specifications
| Exit Pupil: | 2.6mm |
| Field of View @ 100m: | 2.2m / 7.21ft |
| Rear Parallax Adjustment (m): | 10m-Infinity / 10yds-Infinity |
| Eye Relief (in): | 3.9 / 3.4 |
| Diopter Compensation: | -2 ~ +1 dpr |
| Click Adjustment Value: | 0.1 MRAD / 0.25 MOA |
| Adjustment Per Revoultion: | 5 Mils / 15 MOA |
| Total Elevation Adjustment: | 120 MOA |
| Total Windage Adjustment | 120 MOA |
| Type of Reticle: | Mil-Quad / MOA-Quad |
| Coating: | Fully Multi Coated |
| Waterproof: | Yes |
| Fogproof: | Yes |
| Shockproof: | Yes |
| Weight (oz): | 18.3 |
| Objective Bell Diamater (A): | 49.5mm / 1.949" |
| Bell Length (B): | 101.5mm / 3.996" |
| (C): | 69mm / 2.716" |
| Tube Length (D): | 148mm / 5.827" |
| Overall Length (E): | 340mm / 13.385" |
| (F): | 49mm / 1.929" |
| Eyepiece length (G): | 90.5mm / 3..562" |
| Eyepiece Diameter (H): | 46mm / 1.811" |
| (I): | 31.9mm / 1.255" |
| Tube Diameter (J): | 30mm / 1.181" |
SWFA SS 16x42 Mil-Quad Tactical Rear Focus Rifle scope
-
Matte Finish
-
Mil-Quad Reticle
-
30mm Tube
-
Rear Focus
-
Recoil Tested to .50 cal
-
.10 MRAD Turrets
- Suitable for Spring Powered Air Rifles
Mil-Quad
