Spuhr ISMS QDP Quick Detach Picatinny Mount-34mm-0 MOA-34mm
Spuhr ISMS QDP Quick Detach Picatinny Mount-34mm-0 MOA-34mm
Spuhr
SKU#QDP-4046 Spuhr

Spuhr ISMS QDP Quick Detach Picatinny Mount-34mm-0 MOA-34mm

Same Day Dispatch on in-stock items before 14:30pm
Product Information Find Out More
Description

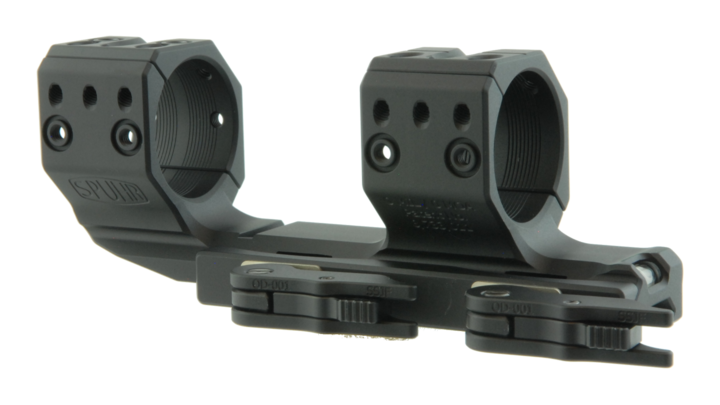

Spuhr ISMS QDP-4046 34mm Medium (34mm) Quick Detach 0 MOA Cantilever Mount

The Spuhr ISMS QDP-4046 is a Quick detachable cantilever mount featuring side clamp and dual levers on the left side of the mount, with tensioning screws on opposite side of the mount body. Allows the scope to be mounted 40 mm/1.57” farther forward than with a non-cantilever mount.

Specs
Spuhr ISMS QDP-4046 34mm Medium (34mm) Quick Detach 0 MOA Cantilever Mount Specifications

Quick detachable mount for AR-style rifles


Rings: 34 mm
Tilt: 0 MIL/MOA
Height: 34 mm/1.35”
Length: 151 mm/5.94” (mount body only)
Weight: 268 g/9.5 oz
Interfaces: 8 sets
EAN: 7340150705138



Features
Spuhr ISMS QDP-4046 34mm Medium (34mm) Quick Detach 0 MOA Cantilever Mount Features

The QDP-4046 is designed for use on AR15/AR10 rifles with MIL-STD-1913 or STANAG 4694 rails. The QDP-4046 will fit most 34 mm scope tubes except for scopes with extended erector housings, such as the US Optics TPAL/EREK and the Nightforce BEAST.

The IDEAL SCOPE MOUNT SYSTEM series of mounts feature eight set of interfaces to attach any of more than 40 different accessories and has a bubble level integrated in the rear plane of the mount body to prevent canting of the rifle.

The rings are diagonally cut for increased visibility of the elevation and windage turrets (US Patent 8,733,011). The mounts are machined from billet 7075 T651 aluminum and all aluminum parts are hardcoat anodized. The Torx 20 ring and clamping screws are zinc-nickel coated for corrosion resistance.

The screws come pre-waxed from the factory to ensure proper torque values. The mount is shipped with a manual and a “wedge” leveling key.
