HIKMICRO Stellar Pro 50mm Thermal Rifle Scope - SQ50

SKU
HM-SQ50
RRP £3,799.99 incl VAT

Please Log-in to buy this product

The range-topping Stellar Pro Thermal 50mm Rifle Scope delivers the renowned, high-quality HIKMICRO Thermal image in a traditional Rifle Scope chassis for the very, first time.

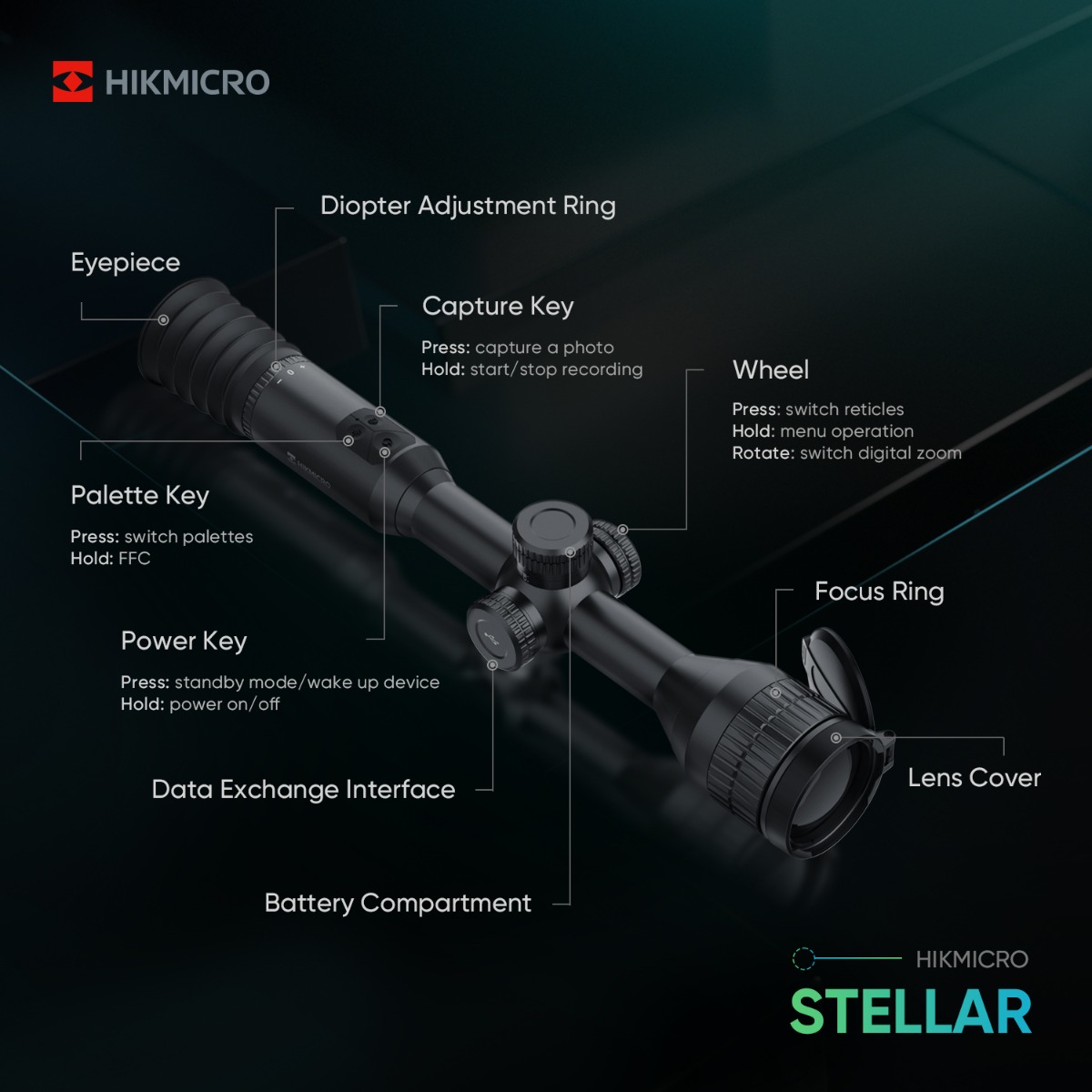

The Stellar Pro has been developed with a sleek, ergonomic design to put all of the major controls within easy reach. The innovative jog dial makes it easy to adjust the magnification and access the menu – while the three buttons on the eyepiece provide the user with access to key features such as video recording and standby mode.

The Stellar Pro uses a conventional 30mm tube Rifle Scope chassis allowing you to attach it to your Rifle using standard scope rings. This makes it easy to mount and achieve the perfect eye relief while also maintaining the traditional appearance of your Rifle.

At the heart of the Stellar Pro 50mm is the HIKMICRO 640x512px Thermal sensor with sub-35mk NETD. This pairs with the high quality 50mm lens system to deliver the ultimate high magnification and detailed image with 2.3x magnification and up to 2600m detection distance. In addition to the 2.3x base magnification, the Stellar offers up to 8x digital magnification providing the Scope with a magnification range from 2.3 – 18x. You also have 4 colour palettes to choose from; Black Hot, White Hot, Red Hot and Fusion.

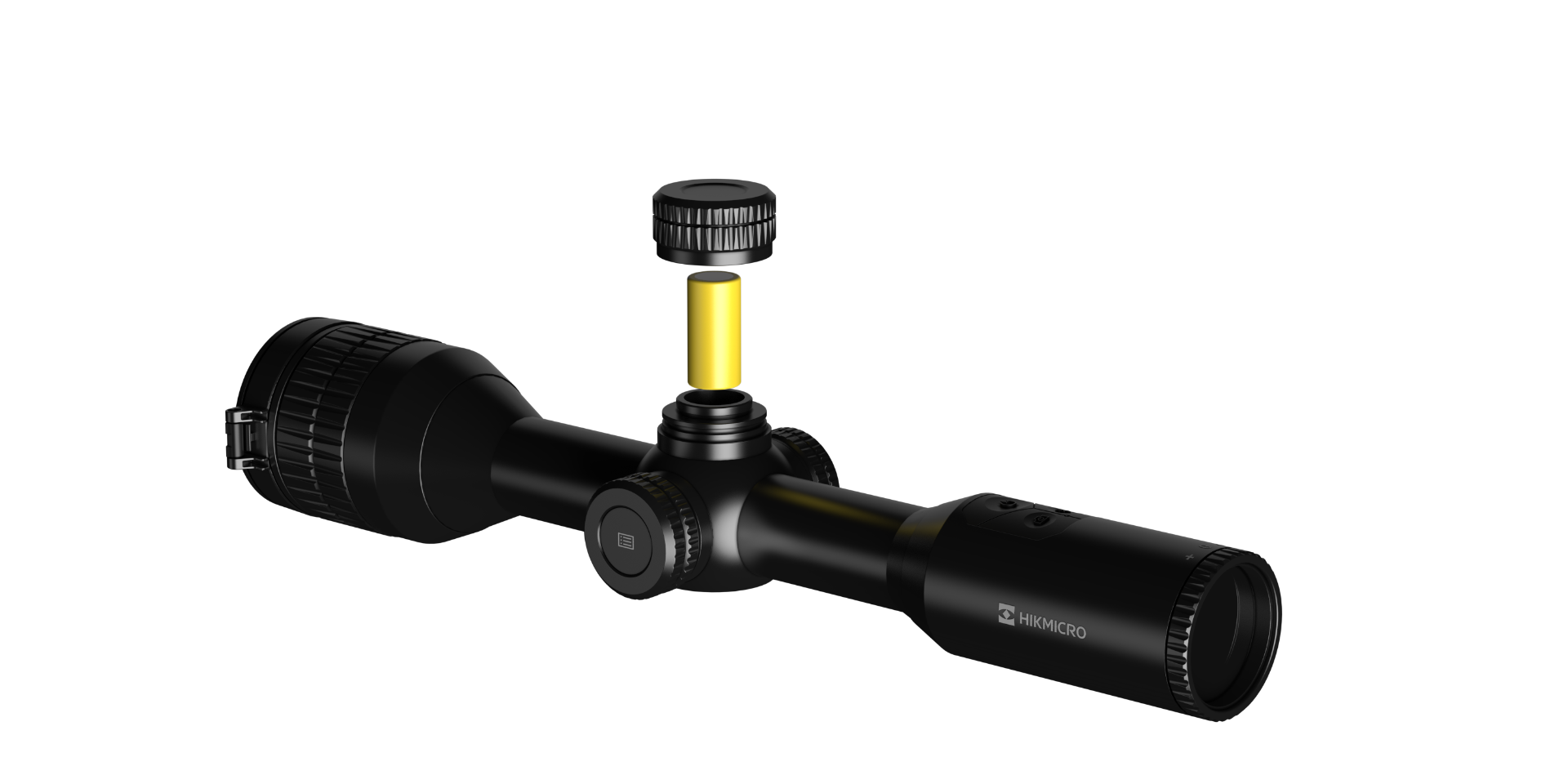

Power is provided from two internal lithium batteries which provide an outstanding 13 hours of run time. There is an additional battery compartment that accepts a removable CR123A battery. This is designed as an emergency backup and provides an additional 1 hour of runtime.

The Stellar Pro also introduces recoil-activated recording so you can automatically capture the important parts of your shooting trips on video using the 64GB internal storage. The Stellar series is also fitted with a microphone to capture sound with your videos.

Zeroing has been simplified with the inclusion of freeze-frame and magnification during setup with your Rifle. Advanced software provides up to 5 zeroing profiles allowing you to use the Stellar on multiple Rifles.

Under the cap that traditionally houses the windage adjustment, you will find a USB-C port that allows you to transfer data and recharge the Scope. This also allows you to power the Stellar from an external USB power bank.

Use the inbuilt Wi-Fi to connect to the HIKMICRO Sight app and stream, record and control the Stellar from your phone, tablet or another mobile device. You can stream in real-time to share your hunting experience with a friend. The app also gives you access to all of the major controls like colour palettes, magnification, brightness and contrast. This makes it very easy for the user to configure the Stellar to match their preferred Thermal image.

More Information

More Information
Brand HIKMICRO
Product Name A-Z HIKMICRO Stellar Pro 50mm Thermal Rifle Scope - SQ50
SKU HM-SQ50
Unit Type Thermal
Detection Range 2600m
Display Resolution 1024x768
Display Type OLED
FOV @ 100 yards 8.8°
Magnification (Digital) 1x
Magnification (Optical) 2.3x
NETD <35mK
Objective Lens Diameter 50mm
Operating Temperature -30/+55°C
Pixel Pitch 12μm
Refresh Rate 50HZ
Sensor Resolution 640x512
Sound Recording Yes
Video Recording Yes
WiFi Yes
Manuals

Download SQ50 Manual HERE

Download Thermal User Guide HERE

Download Firmware Update Information HERE

Specs


SKU HM-SH35   HM-SQ35   HM-SH50   HM-SQ50

Main:
Sensor 384×288px @ 12µm   640 x 512 @ 12µm   384×288px @ 12µm   640 x 512 @ 12µm
Objective Lens (Focal length) 35 mm / F1.0   35 mm / F1.0   50 mm / F1.0   50 mm / F1.0
Detection Range (Human) 1800m   1800m   2600m   2600m
Magnification 2.7x   1.62x   3.8x   2.3x

Sensor:
Type Uncooled Focal Plane Arrays   Uncooled Focal Plane Arrays   Uncooled Focal Plane Arrays   Uncooled Focal Plane Arrays
Resolution, pixels 384 × 288 px   640 x 512 px   384 × 288 px   640 x 512 px
Pixel pitch, µm 12µm   12µm   12µm   12µm
Frame rate, Hz 50 Hz   50 Hz   50 Hz   50 Hz
NETD <35mK   <35mK   <35mK   <35mK

Optics:
Objective lens F1.0   F1.0   F1.0   F1.0
Focal Length 35mm   35mm   50mm   50mm
Magnification (Optical) 2.7x    1.62x   3.8x   2.3x
Magnification (Digital) 1x, 2x, 4x, 8x   1x, 2x, 4x, 8x   1x, 2x, 4x, 8x   1x, 2x, 4x, 8x
Field of view  7.53° × 5.65°   12.52° × 10.03°    5.28° × 3.96°    8.80° × 7.03°

Display:
Type 9.9mm OLED   9.9mm OLED   9.9mm OLED   9.9mm OLED
Resolution, Pixels  1024 × 768 px   1024 × 768 px   1024 × 768 px   1024 × 768 px
Eye Relief 60mm   60mm   60mm   60mm
Colour Palettes Black Hot, White Hot, Red Hot, Fusion   Black Hot, White Hot, Red Hot, Fusion   Black Hot, White Hot, Red Hot, Fusion   Black Hot, White Hot, Red Hot, Fusion
Picture-in-Picture Yes   Yes   Yes   Yes

Reticle options:
Number of preloaded reticles 5 Reticle choices   5 Reticle choices   5 Reticle choices   5 Reticle choices
Reticle Colours  White, Green, Red   White, Green, Red   White, Green, Red   White, Green, Red

Video Recorder:
Video recording Yes   Yes   Yes   Yes
Picture snapshot Yes   Yes   Yes   Yes
Audio recording Yes   Yes   Yes   Yes
Recoil-activated recording Yes   Yes   Yes   Yes
Build-in memory, Gb 64 Gb   64 Gb   64 Gb   64 Gb

Additional features:
Hot Tracking  YES   YES   YES   YES
WiFI  YES   YES   YES   YES
HIKMICRO Connect App support YES   YES   YES   YES

Environmental:
Recoil resistance 6750 J   6750 J   6750 J   6750 J
Degree of protection, IP code IP67   IP67   IP67   IP67
Water protection Protected against temporary submersion in water   Protected against temporary submersion in water   Protected against temporary submersion in water   Protected against temporary submersion in water
Operating temperature range -30 °C to 55 °C   -30 °C to 55 °C   -30 °C to 55 °C   -30 °C to 55 °C

Weight & Size:
Dimensions, mm 407mm × 78.1 mm × 75.9 mm   407mm × 78.1 mm × 75.9 mm   407mm × 78.1 mm × 75.9 mm   407mm × 78.1 mm × 75.9 mm
Weight, kg 890 g    890 g    890 g    890 g

Power Supply:
Operating time on battery
(WiFi & Hot tracking disabled)
Up to 15 hours continuous running   Up to 13 hours continuous running   Up to 15 hours continuous running   Up to 13 hours continuous running
Charging interface USB-C   USB-C   USB-C   USB-C
Battery type 2x Internal rechargable Lithium batteries

1x Replaceable CR123
  2x Internal rechargable Lithium batteries

1x Replaceable CR123
  2x Internal rechargable Lithium batteries

1x Replaceable CR123
  2x Internal rechargable Lithium batteries

1x Replaceable CR123

Warranty Period
Main Unit
3 Years   3 Years   3 Years   3 Years

SKU HM-SH35   HM-SQ35   HM-SH50   HM-SQ50



Reticle 1 640, 12mkm, 35mm SQ35 640, 12mkm, 50mm SQ50 384, 12mkm, 50mm SH50 384, 12mkm, 35mm SH35
    size on target size on target size on target size on target
    pixel MOA mrad pixel MOA mrad pixel MOA mrad pixel MOA mrad
  A 154 120.70 35.11 154 84.60 24.61 154 47.63 13.85 154 68.01 19.78
  B 154 112.99 32.87 154 79.26 23.05 154 47.61 13.85 154 67.97 19.77
  C 44 34.49 10.03 44 24.17 7.03 44 13.61 3.96 44 19.43 5.65
  D 12 8.80 2.56 12 6.18 1.80 12 3.71 1.08 12 5.30 1.54
  E 12 9.41 2.74 12 6.59 1.92 12 3.71 1.08 12 5.30 1.54
  F 44 32.28 9.39 44 22.64 6.59 44 13.60 3.96 44 19.42 5.65



Reticle 2 640, 12mkm, 35mm SQ35 640, 12mkm, 50mm SQ50 384, 12mkm, 50mm SH50 384, 12mkm, 35mm SH35
    size on target size on target size on target size on target
    pixel MOA mrad pixel MOA mrad pixel MOA mrad pixel MOA mrad
  A 133 104.24 30.32 133 73.06 21.25 133 41.13 11.97 133 58.74 17.09
  B 133 97.59 28.39 133 68.45 19.91 133 41.12 11.96 133 58.70 17.08
  C 21 15.41 4.48 21 10.81 3.14 21 6.49 1.89 21 9.27 2.70
  D 21 16.46 4.79 21 11.54 3.36 21 6.49 1.89 21 9.27 2.70



Reticle 3 640, 12mkm, 35mm SQ35 640, 12mkm, 50mm SQ50 384, 12mkm, 50mm SH50 384, 12mkm, 35mm SH35
    size on target size on target size on target size on target
    pixel MOA mrad pixel MOA mrad pixel MOA mrad pixel MOA mrad
  A 133 104.24 30.32 133 73.06 21.25 133 41.13 11.97 133 58.74 17.09
  B 133 97.59 28.39 133 68.45 19.91 133 41.12 11.96 133 58.70 17.08
  C 21 15.41 4.48 21 10.81 3.14 21 6.49 1.89 21 9.27 2.70
  D 21 16.46 4.79 21 11.54 3.36 21 6.49 1.89 21 9.27 2.70

Reticle 4 640, 12mkm, 35mm SQ35 640, 12mkm, 50mm SQ50 384, 12mkm, 50mm SH50 384, 12mkm, 35mm SH35
    size on target size on target size on target size on target
    pixel MOA mrad pixel MOA mrad pixel MOA mrad pixel MOA mrad
  A 110 86.21 25.08 140 76.91 22.37 170 52.58 15.29 170 75.08 21.84
  B 88 64.57 18.78 120 61.76 17.96 136 42.05 12.23 136 60.02 17.46
  C 30 23.51 6.84 44 24.17 7.03 37 11.44 3.33 37 20.76 6.04
  D 8 5.87 1.71 8 4.12 1.20 8 2.47 0.72 8 3.53 1.03
  E 40 29.35 8.54 56 28.82 8.38 43 13.29 3.87 43 18.98 5.52
  F 4 3.14 0.91 4 2.20 0.64 4 1.24 0.36 4 1.77 0.51
  G 4 3.14 0.91 4 2.20 0.64 4 1.24 0.36 4 1.77 0.51
  H 4 2.93 0.85 4 2.06 0.60 4 1.24 0.36 4 1.77 0.51
  I 2 1.47 0.43 2 1.03 0.30 2 0.62 0.18 2 0.88 0.26
  J 2 1.57 0.46 2 1.10 0.32 2 0.62 0.18 2 0.88 0.26
  K 11 8.07 2.35 14 7.21 2.10 24 7.42 2.16 17 7.50 2.18
  L 11 8.62 2.51 14 7.69 2.24 24 7.42 2.16 17 7.51 2.18



1.     A represents the vertical distance from the centre point to the top of the below small triangle. ( Blue line)
2.     B represents the horizon distance from the centre point to the top of the right-hand small triangle. ( yellow line)
3.     C&E represents the distance from the top of the triangle to the bottom of the pentagon. ( green range)
4.     D&F is the base of the pentagon.
5.     G&I is the height of the small triangle.
6.     H&J is half the base of the triangle.
7.     K is the minimum interval on the horizon.
8.     L is the minimum interval on vertical.



Reticle 5 640, 12mkm, 35mm SQ35 640, 12mkm, 50mm SQ50 384, 12mkm, 50mm SH50 384, 12mkm, 35mm SH35
    size on target size on target size on target size on target
    pixel MOA mrad pixel MOA mrad pixel MOA mrad pixel MOA mrad
  A 6 4.40 1.28 6 3.09 0.90 6 1.86 0.54 6 2.65 0.77
  B 6 4.70 1.37 6 3.30 0.96 6 1.86 0.54 6 2.65 0.77
  C 3 2.35 0.68 3 1.65 0.48 3 0.93 0.27 3 1.32 0.39
  D 3 2.20 0.64 3 1.54 0.45 3 0.93 0.27 3 1.32 0.39
  E 7     7     7     7
  F 7     7     7     7



Features

  • Conventional Rifle Scope shape with a 30mm tube to make mounting and eye relief easy.
  • Up to 13hrs runtime from 2x internal batteries and 1x removable CR123A.
  • Ultra-long 2600m detection distance.
  • Excellent image quality from the HIKMICRO sub 35NETD Thermal sensor and F1.0 lens system.
  • All major settings are controlled through the conveniently located jog dial.
  • Recoil-activated recording and built in microphone.
  • Multiple Zeroing profiles (up to 5 profiles can be stored in the scope).
  • WiFi with access to the HIKMICRO Sight app.
  • Focusable lens.
  • 64GB internal memory.
  • Picture-in-Picture.
  • IP67 rated – Water & Dustproof.
  • One-shot zero.

Warranty

  • 3 Year Warranty
