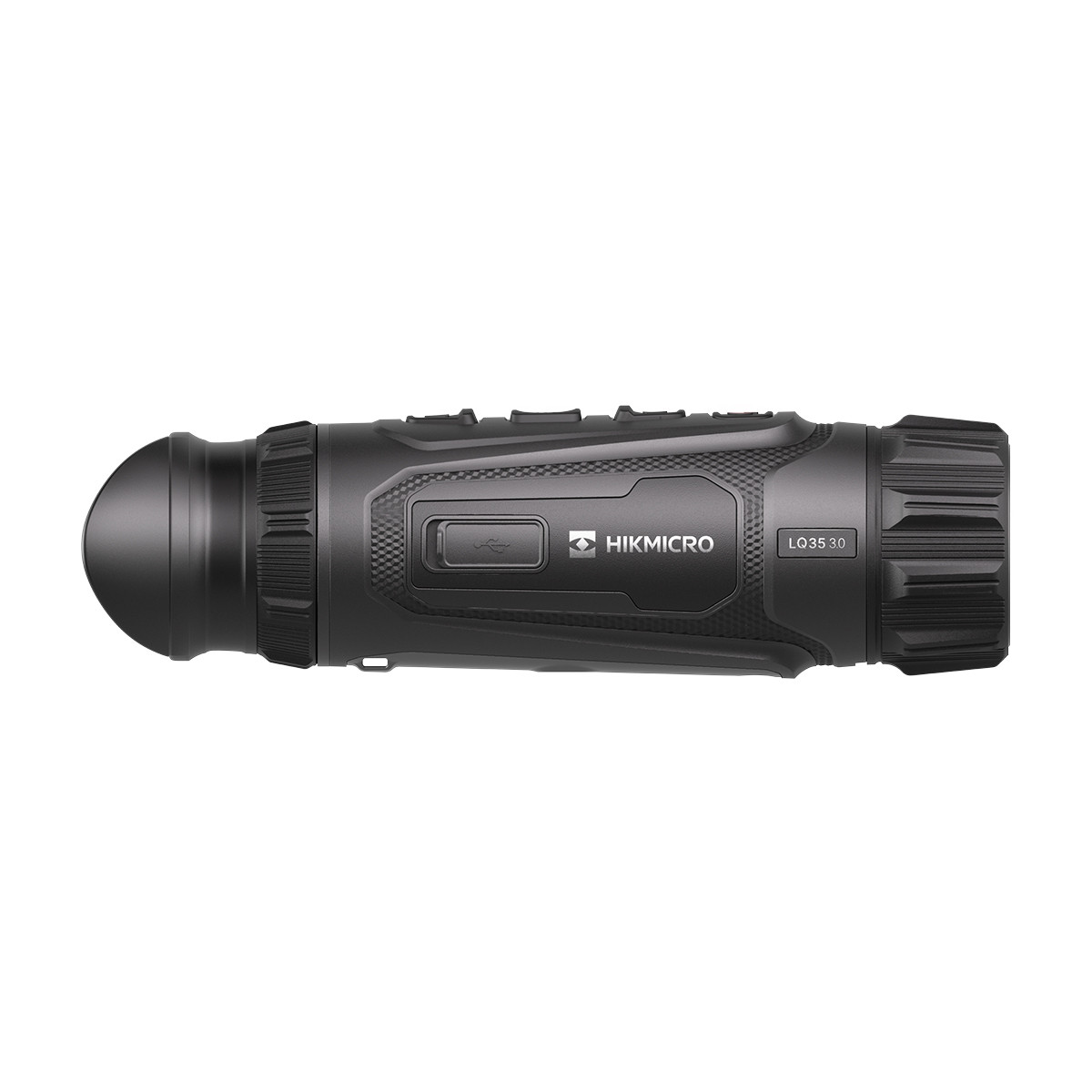

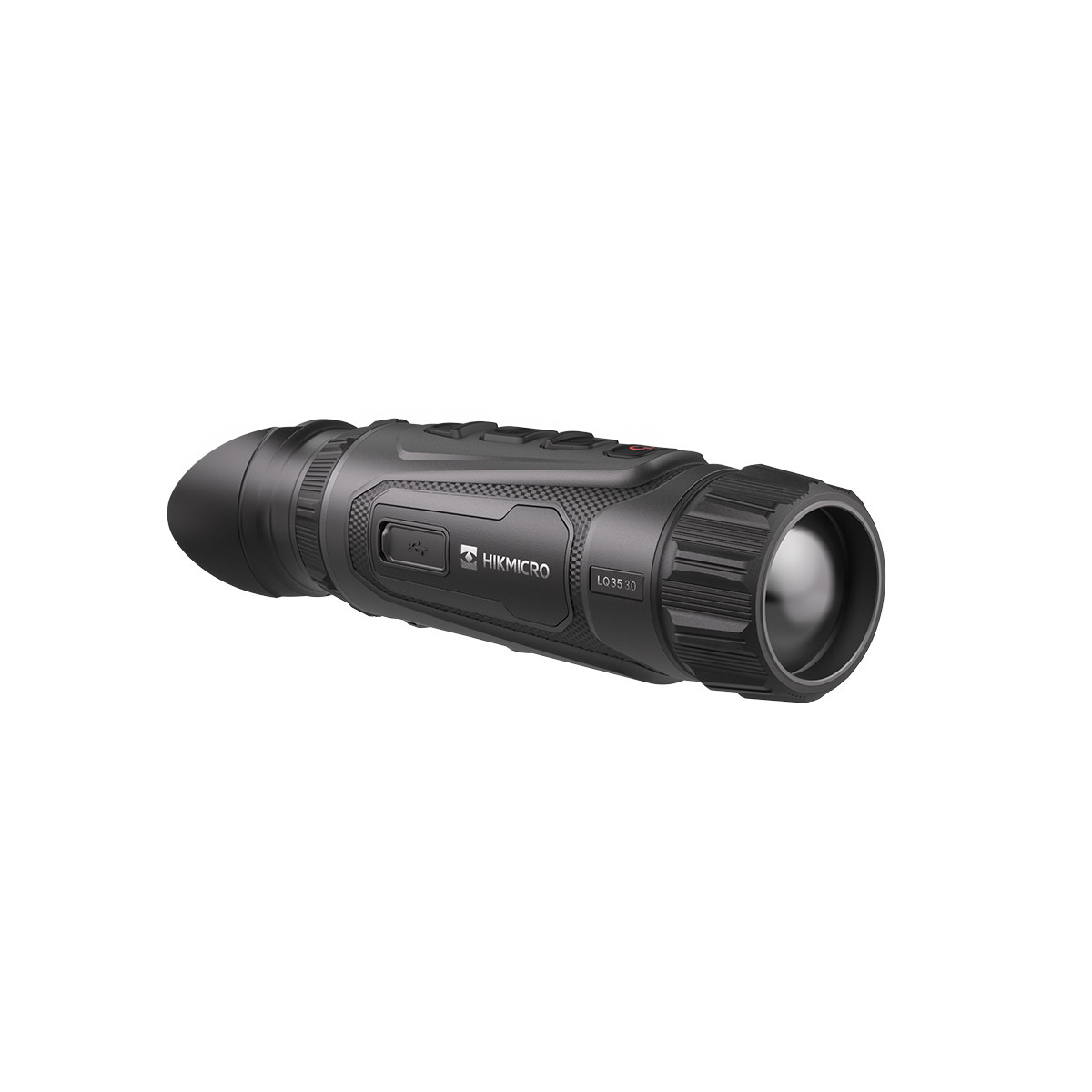

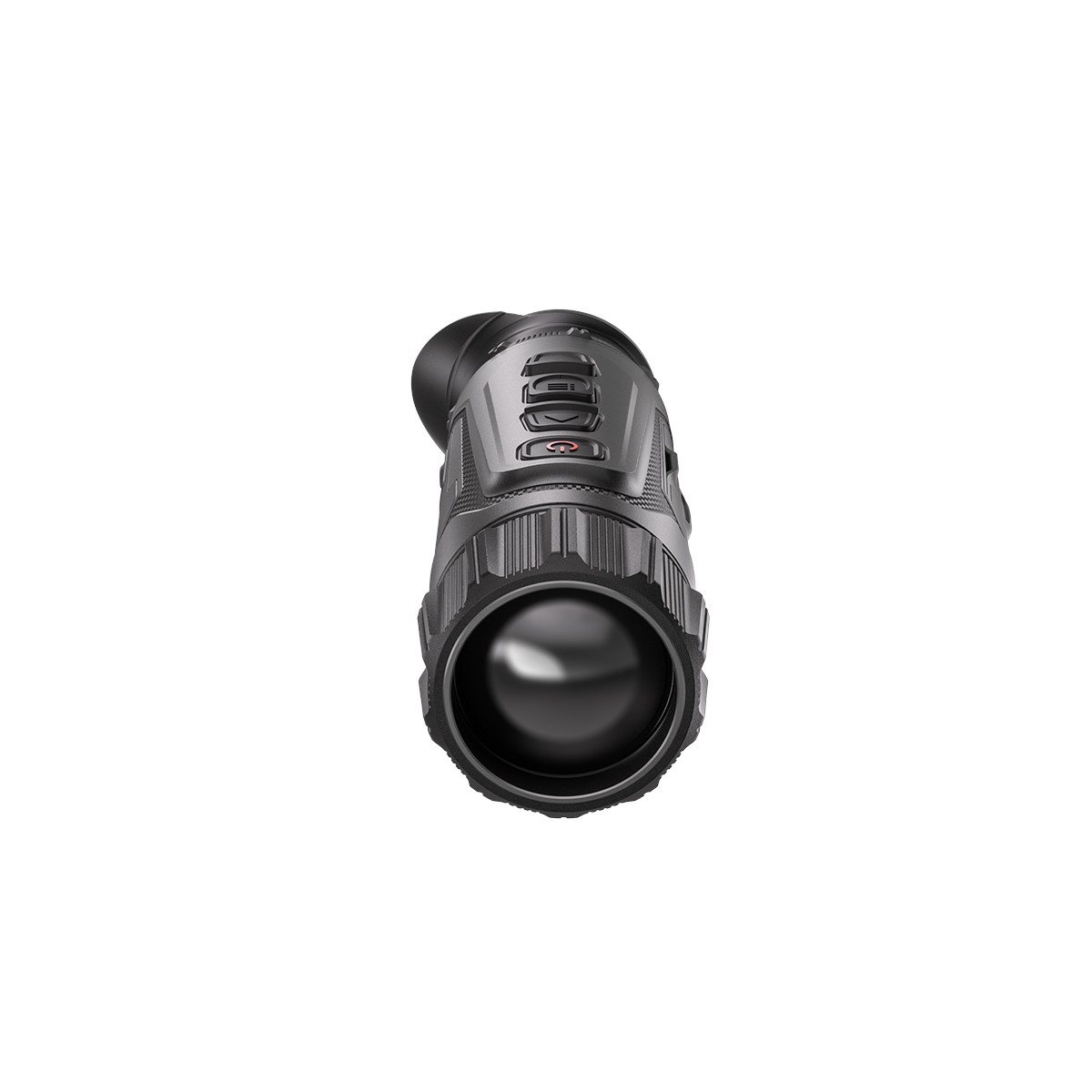

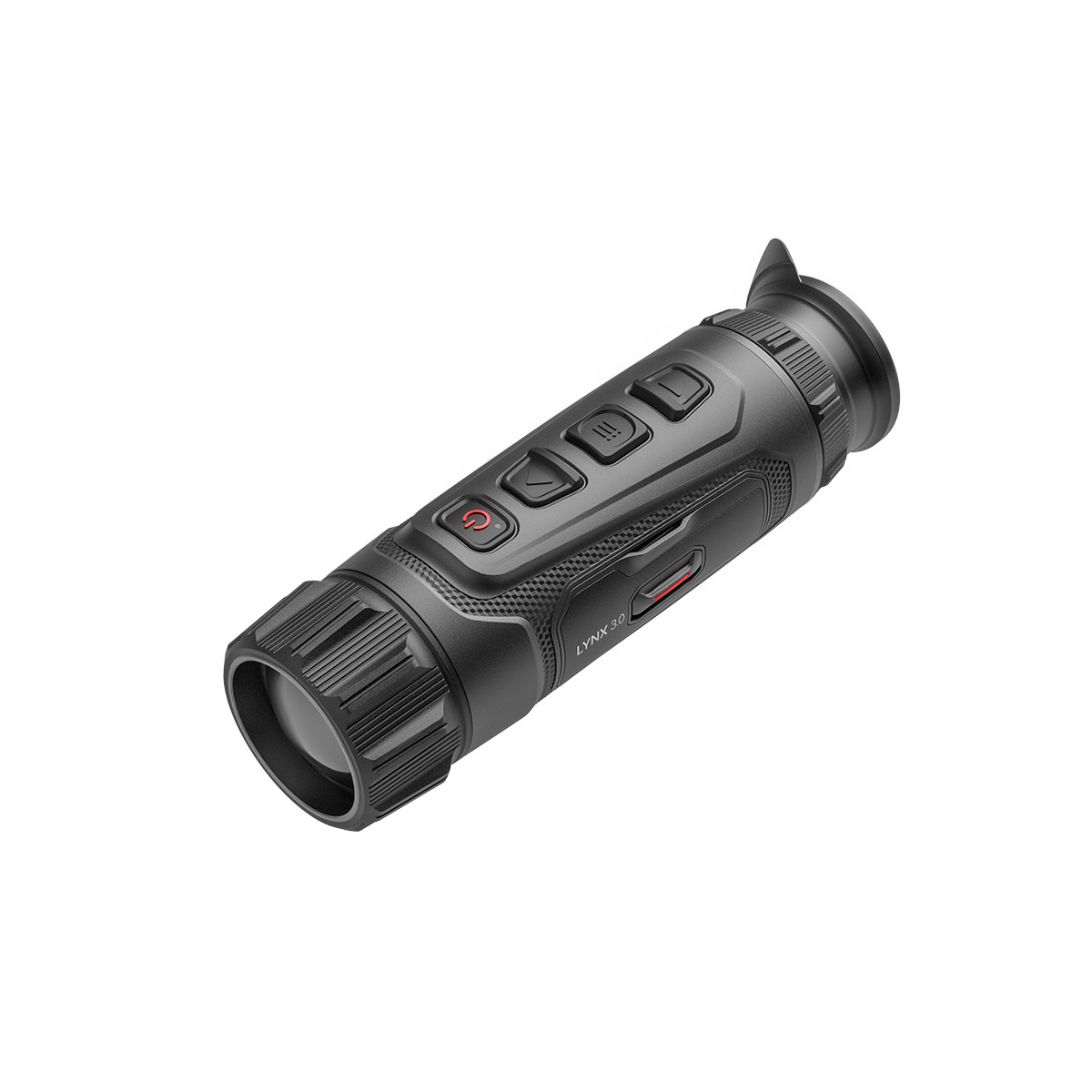

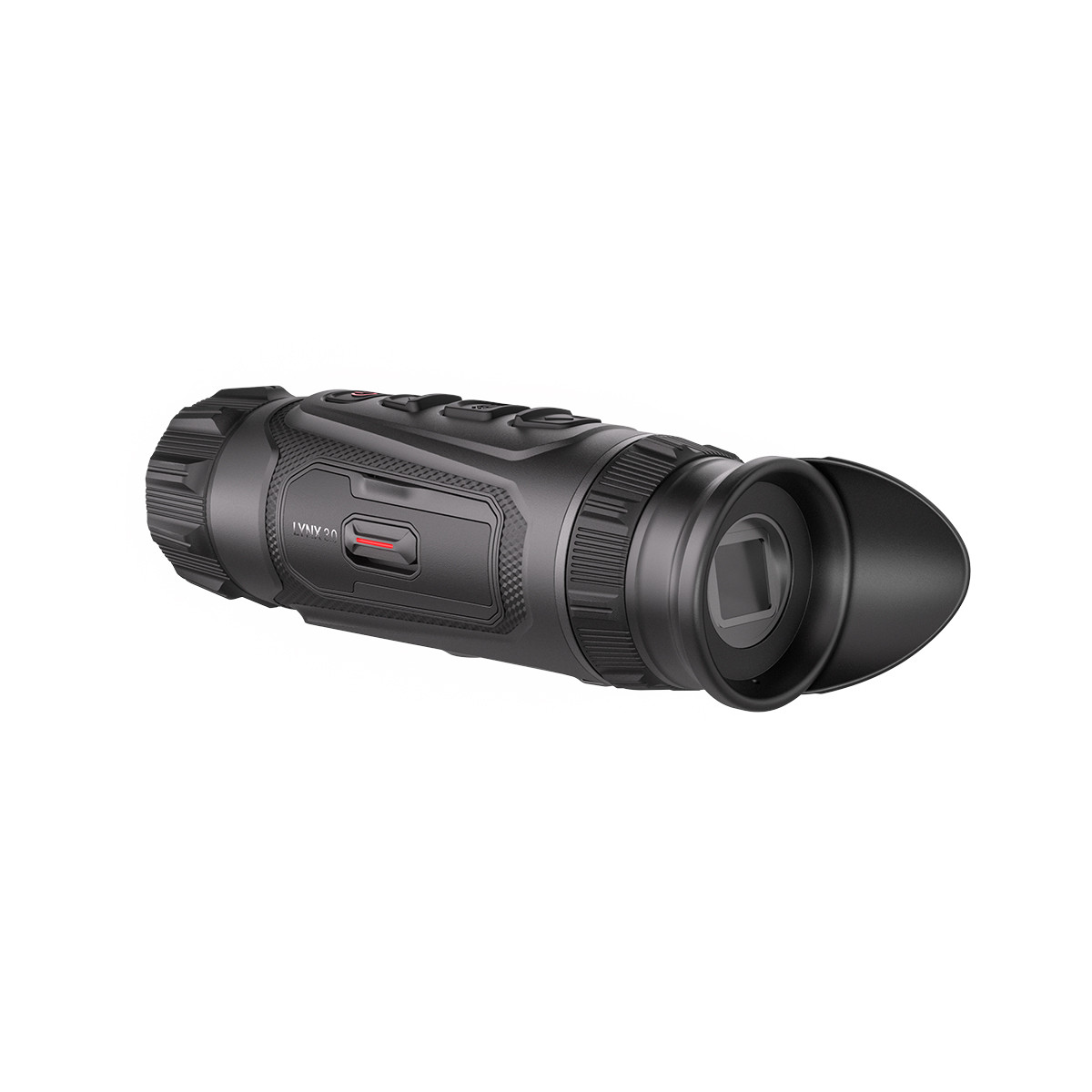

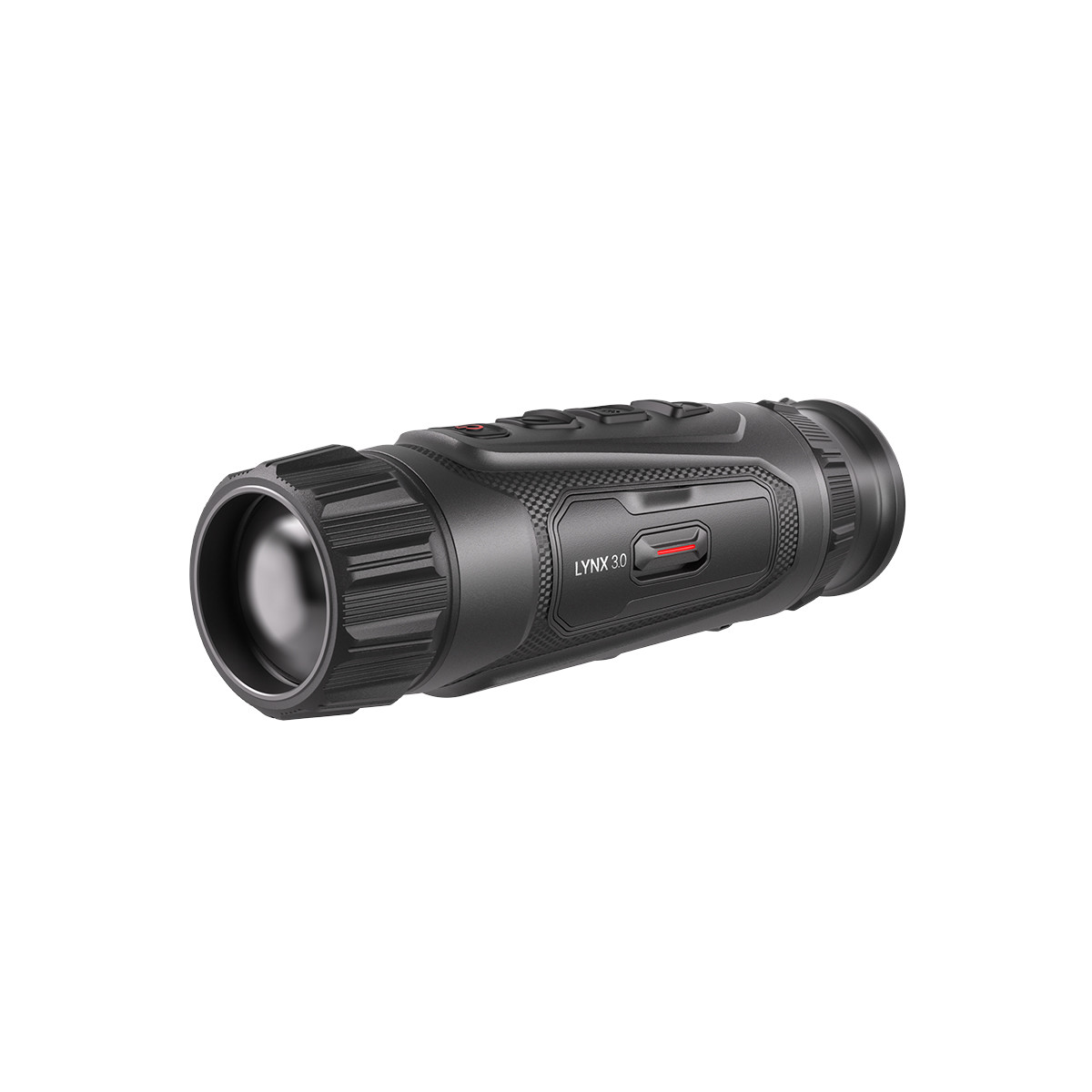

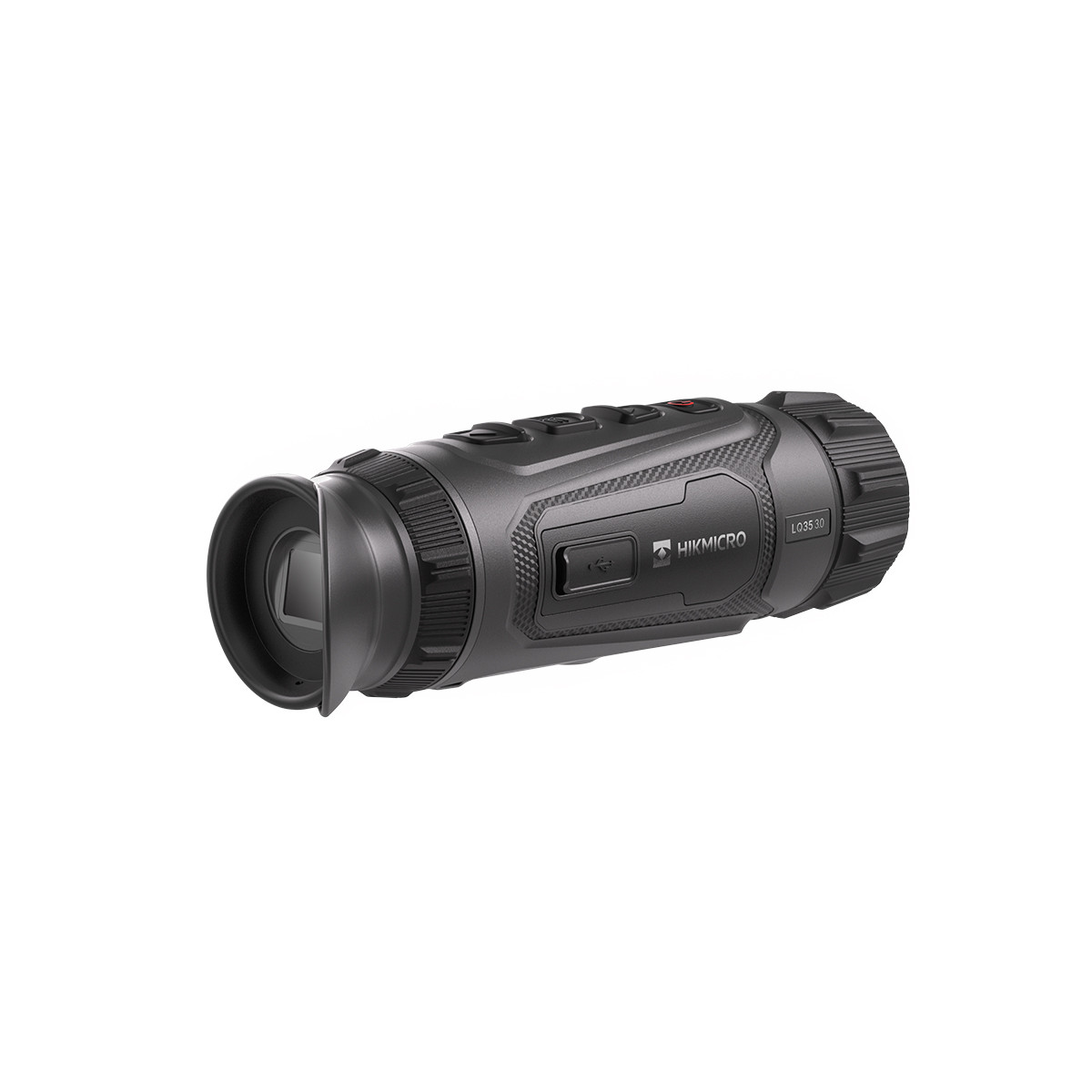

HIKMICRO Lynx 3.0 LQ35 35mm Thermal Monocular
- High-resolution 640×512 thermal sensor with 35mm F1.0 lens for exceptional image clarity.
- Long-range detection up to 1800 metres, ideal for hunting, security, and professional surveillance.
- AI Image Pro 3.0 and Zoom Pro deliver enhanced detail, stability, and consistent image quality.
- Shutterless HSIS technology ensures smooth, silent, uninterrupted viewing.
- Lightweight and robust at 354.5g, with a replaceable 18650 battery offering up to 4.5 hours runtime at –20°C.
- Wide 12.5° × 7.5° field of view with 1.9–15.2x magnification for versatile observation.
The Lynx 3.0 , redefining entry-level thermal imagers.
The HIKMICRO Lynx 3.0 LQ35 represents the pinnacle of thermal monocular performance for serious professionals. Featuring a 640x512 thermal detector and a 35mm F1.0 lens, it delivers 1.9x base magnification out to 15.2x, a 12.5°×7.5° field of view, and a detection range of up to 1800 metres, making it the ultimate tool for long-range observation.
Incorporating AI-driven Image Pro 3.0 and Zoom Pro algorithms, the LQ35 offers superior image fidelity and consistency across challenging conditions. The HSIS shutterless technology enables smooth, silent operation for continuous, distraction-free imaging.
At 354.5 grams, the LQ35 remains portable yet robust. A replaceable 18650 battery provides up to 4.5 hours of operation at -20°C, ensuring dependable field endurance. Ideal for hunting, security, or professional surveillance, it delivers unmatched clarity and control.
- Image Sensor VOx Uncooled Focal Plane Arrays
- Max. Resolution 640 × 512
- Frame Rate 50 Hz
- Pixel Interval 12 μm
- Response Waveband 8 μm – 14 μm
- NETD < 15 mK (@25°C), F#=1.0
- Lens (Focal Length) 35 mm, f1.0
- Focus Mode Focus Ring
- Detection Range 1800 m
- Min. Focusing Distance 3.5 m
- Magnification 1.9× – 15.2× (8×)
- Field of View (H × V) 12.5° × 7.5° / 21.9 m × 13.2 m @100 m
- Display 1920 × 1080, 0.49 in, AMOLED
- Palettes Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
- Exit Pupil 6 mm
- Eye Relief 20 mm
- Diopter (Range) -5D to +3D
- Brightness Adjustment Yes
- Tone Adjustment Cold, Warm
- Contrast Adjustment Yes
- Zoom Pro Yes
- HSIS (HIKMICRO Shutterless Image System) Yes
- Image Pro 3.0 Yes
- Record Video Yes
- Capture Snapshot Yes
- Audio Recording Yes
- Standby Mode Yes
- Built-in Memory 64 GB EMMC
- PIP Yes
- Hotspot 2.4 GHz / 5 GHz Wi-Fi
- Hot Track Yes
- Distance Measurement Yes
- Local Album Yes
- Battery Type Replaceable & Rechargeable Li-ion 18650
- Battery Operating Time 5-hour continuous (@25°C), 4.5-hour continuous (@-20°C)
- Type-C Power Supply 5V DC, 2A
- External Power Supply Supported, Direct Charging Supported
- Protection Level IP67
- Dimension 169.6 × 53.6 × 49.5 mm
- Weight 354.5 g (with battery)
- Working Temperature -30°C to 45°C (-22°F to 113°F)
- Humidity ≤ 90%
- Up to 640×512 Thermal resolution
- High-sensitivity thermal module with NETD < 15 mK (@25°C, F# = 1.0).
- 35 mm, F1.0 lens with thermal detection range up to 1800 m
- HIKMICRO Shutterless Imaging System (HSIS)
- AI-powered Image Pro 3.0 and Zoom Pro algorithms
- 0.49-inch OLED display with 1920 × 1080 resolution
- Replaceable and rechargeable 18650 battery provides up to 4.5 hours of continuous operation at -20°C
- Lightweight design at 354.5 g, with a pocket-sized build
- Main Unit: 3 Years
If you're after any lost parts such as lens covers or eye pieces for your unit, Hik Micro now have a spares page which can be found at https://www.hikmicroassist.co.uk/
HIKMICRO has a full UK service and technical centre, complete with Hotline: 0203 514 0092 available to assist with any issues.
